Ripley Smart Aligner with Case

Smart Aligner Plus Antenna Alignment Tool by Multiwave

Now Easier to Use! With a full line of pro tools for more demanding applications.

New Features:

• Anritsu report integration
• Improved Bluetooth integration
• Improved charging volt tolerance
• Microwave Path Alignment
• Quick Report Mode
• Financing Options:

Financing Options:

1-Year easy financing available. Click Here for more information and a financing application.

Click on the "Documents" tab to access a series of free training documents for the Smart Aligner.

Features:

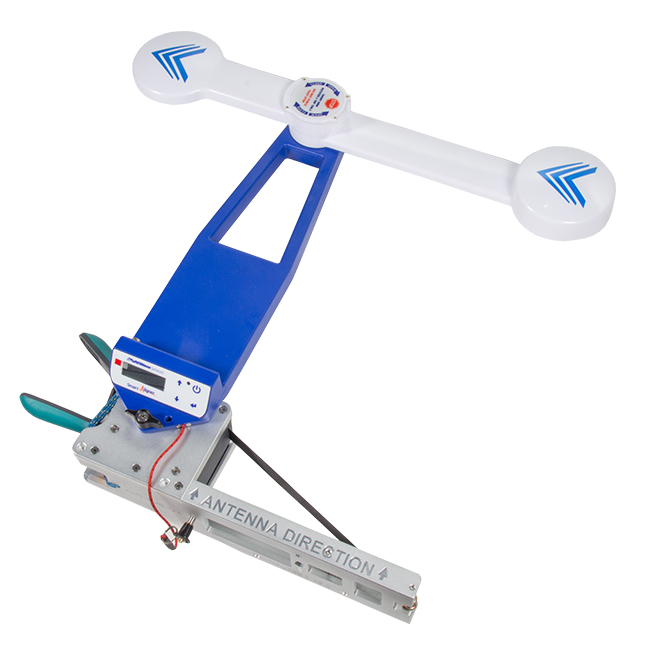

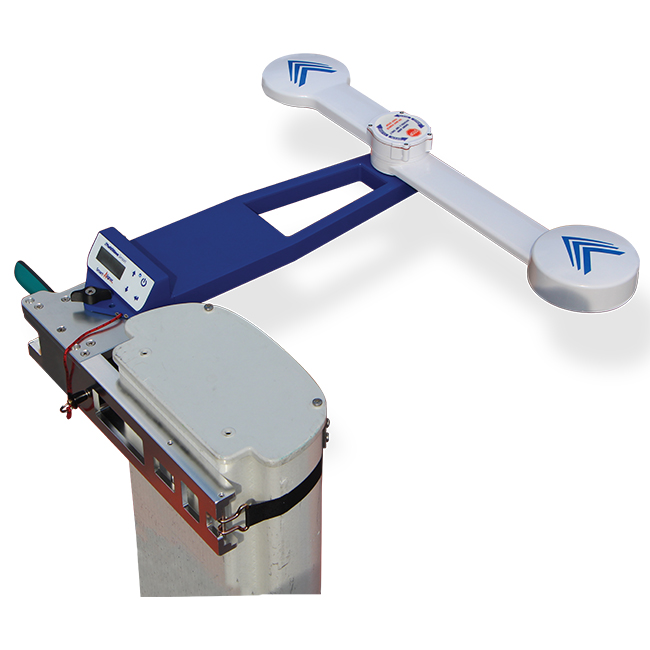

• First foldable GPS Antenna Alignment Tool

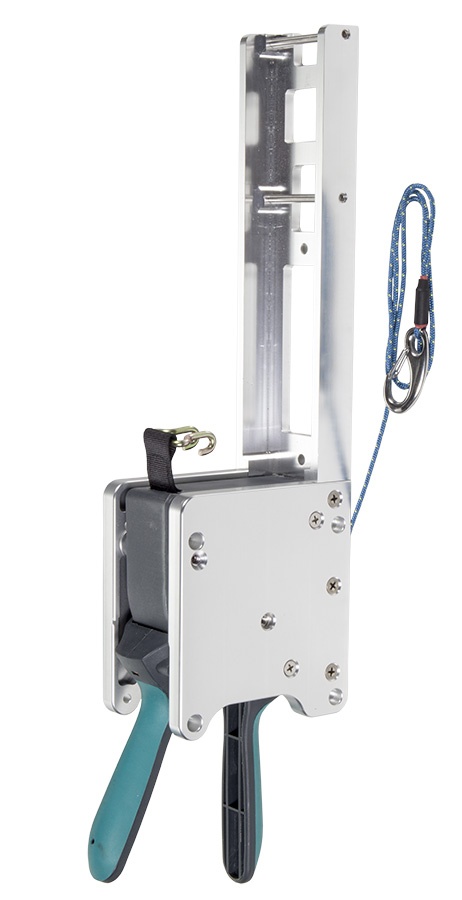

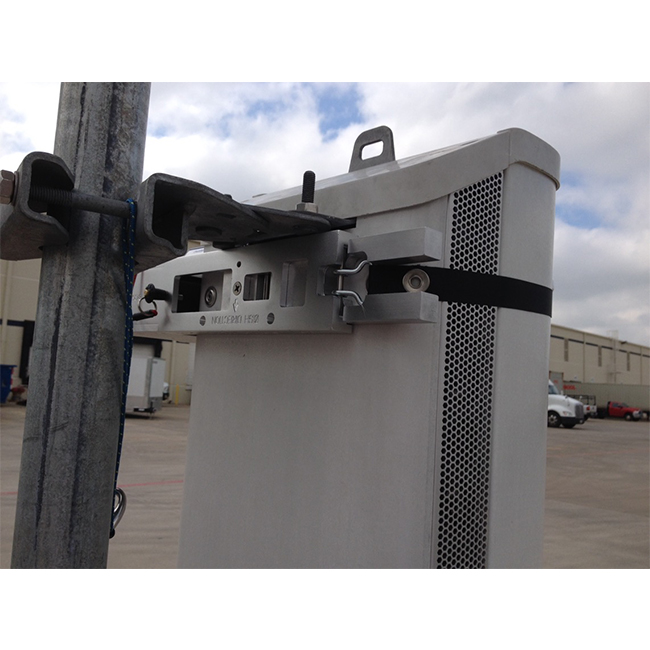

• Universal Mounting Bracket - only one bracket required
• Multiple antenna mounting configurations for the most demanding spatial and RF conditions

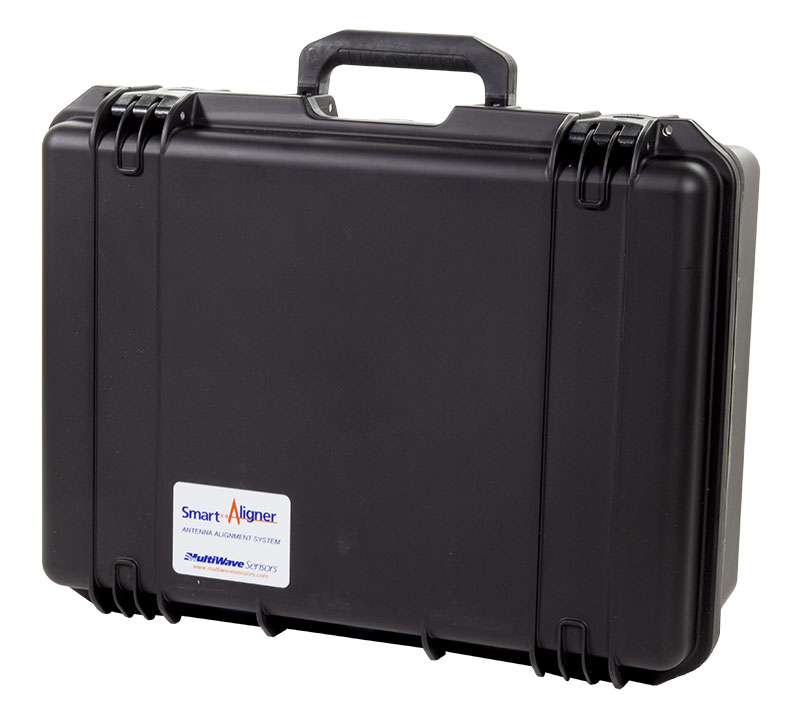

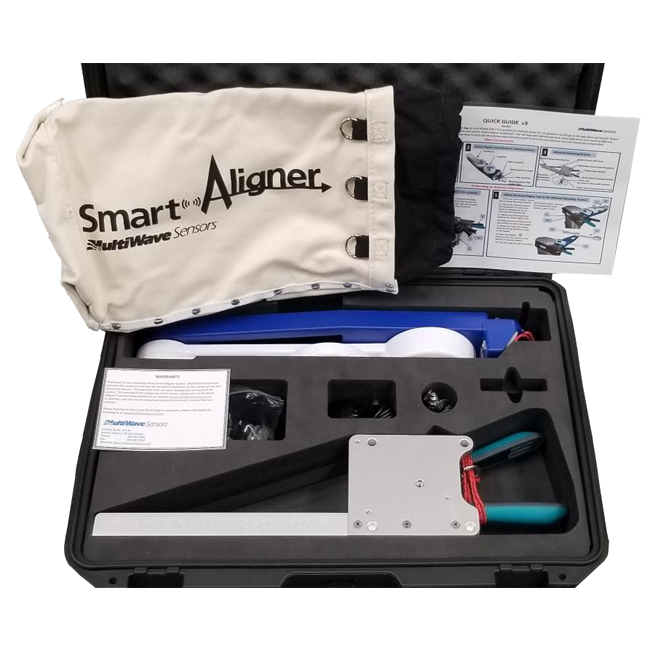

• Tool and Bracket fit into Ruggedized Smart Case (Included)
• Carry on baggage acceptable size
• Included top-closing canvas bolt bag to carry the Smart Aligner
• GLONASS (Global Navigation Satellite System) enabled for increased performance
• Free smartphone app
• Pre-site setup using app:
  • Azimuth and Tilt targets
  • Sector/Position
  • Antenna types
• Measure, Verify and Save data using app
• Create Report from app
  • Include up to four photos in the report
  • Email Report directly from app
  • Database-ready data
• Import emailed Site data directly to app
• More ways to connect:
  •
  • Bluetooth
  • Wi-Fi
  • USB Cable
  • Save an alignment on the tool
• Reporting:
  • Smart Aligner Plus App for Android and iOS
  • Full Closeout reports with up to 10 images
• Battery:
  • Up to 10 hours of run time

 Optional Accessories:

• Backpack
• AIR21 Insert
• AIR32 Insert
• Dish Bracket System
• Nokia FASB Insert
• AIR21 Bracket
• Gogo Bracket
• Dish Adapter
• Laser AGL Cable
• TruPulse 200Laser Rangefinder

Specifications:

• Azimuth accuracy: 0.5º
• Tilt and roll accuracy: 0.1º
• Position accuracy: 60 cm with SBAS
• Start up time: < 30 seconds
• Internal battery: Rechargeable lithium ion
• Operation time: 7 hrs (over 80 alignments)
• Battery charger: AC wall charger and DC car charger
• Dimensions: 19”x 4.5”x 3” (48.3 cm x 11.4 cm x 7.6 cm)
• Weight: 4 lb (1.8 kg)
• Universal Mounting Bracket (patented)
• Dimensions: 19”x 5”x 3” (48.3 cm x 12.7 cm x 7.6 cm)
• Weight: 5 lb (2.3 kg)
• Carrying Smart Case (Included, can contain all components)
• Dimensions: 21”x 16”x 8.5” (53.3 cm x 40.6 cm x 21.6 cm)
• Weight: 12 lb (5.4 kg)
• TOTAL WEIGHT 21 lb (9.5 kg)

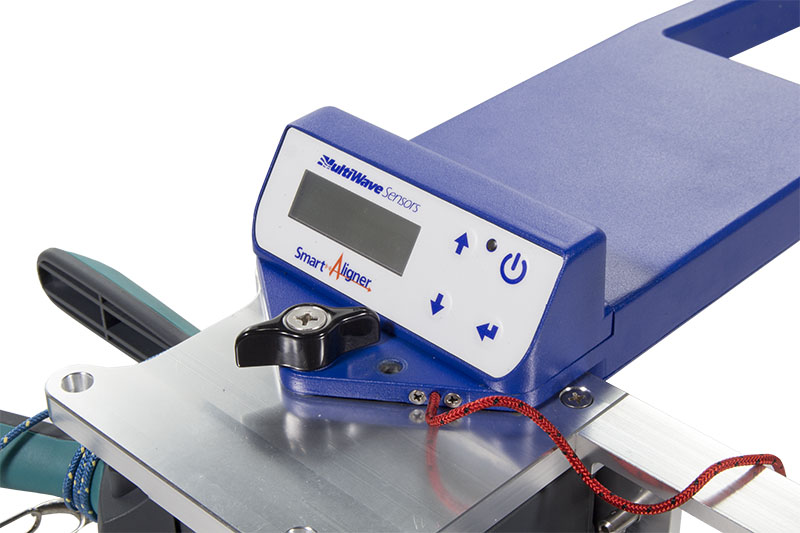

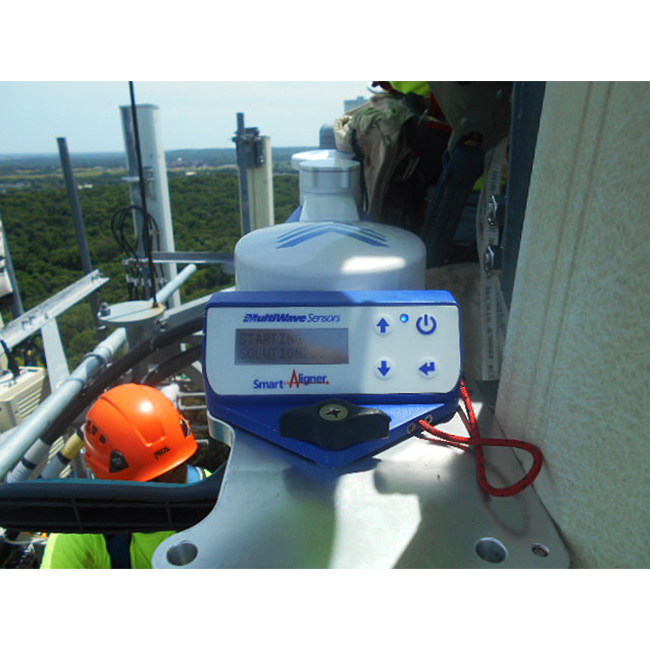

• LED backlit display: User interface and display
• Wi-Fi: Smart Aligner to user’s mobile device
• Connectivity: Smartphone/Tablet – iOS or Android
• Cable interface: Serial RS-232
• Report formats: JPEG (screenshot), PDF or CSV
• Photos: Embedded in PDF report
• Operational temp: -22º F to +158º F (-30º C to + 70º C)
• Sealing: NEMA 4X, IP67
• Shock/vibration: IEC 68-2-27 / IEC 68-2-6
• EMI: FCC Part 15 Subpart B: 2008 and ICES-003:2004
• Approvals: CE and FCC

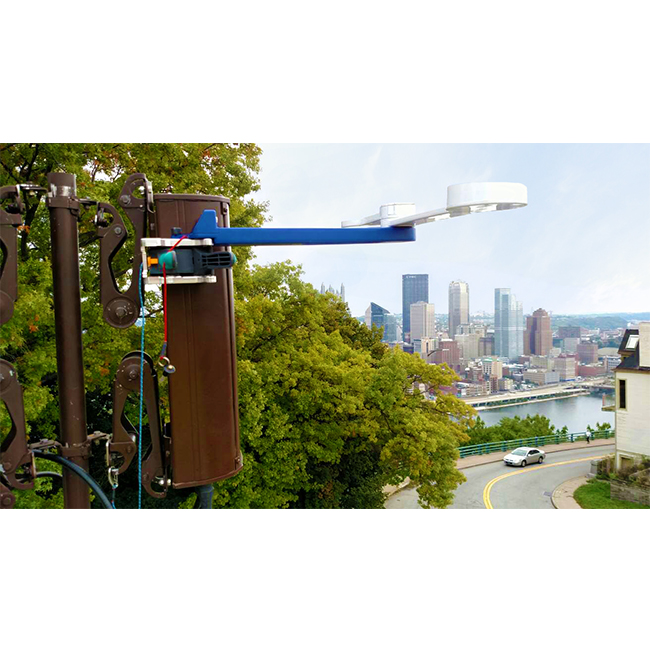

Mounting Configurations to Antenna:

• Multiple offset positions from bracket: forward, side, backward on left or right side of the antenna
• Multiple arm positions: user can orientate the arms according to physical limitations
• Offset and arm position tracking: sensors track tool configuration and adjust the azimuth and tilt relative to the antenna
• Number of mounting configurations: 18

Modes of Use (Smart Aligner Plus App):

• Quick measure: real-time display of antenna orientation information with an option to save a screenshot of the data
• Site survey: set up of site and antenna information
• Align antenna: real-time display of antenna orientation information with the option to verify the alignment
• Verify: verify the alignment - ability to ”Save” the alignment information after verification
• Report mode: create PDF reports from verified alignments or historically saved sites - automatic attachment to an email message
• Import profiles: import CSV file with site and antenna information
• Export profiles: export completed CSV file with appended measured alignment information - automatic attachment to an email message

Approved Carriers, Turf Vendors, and Firms

• AT&T
• Sprint
• Verizon - most regional areas
• MetroPCS
• GOGO (formerly Aircell)
• Ericsson
• Crown Castle
• Black & Veatch
• Bechtel

For any carrier, turf vendor, or firm not listed at this point in time, Multiwave assures that the Smart Aligner Plus will meet or exceed any carrier's requirements. If there is any question with a Carrier over the ability of the Smart Aligner Plus to perform alignments within specification, Multiwave will represent the customer in any way possible to rectify the situation.

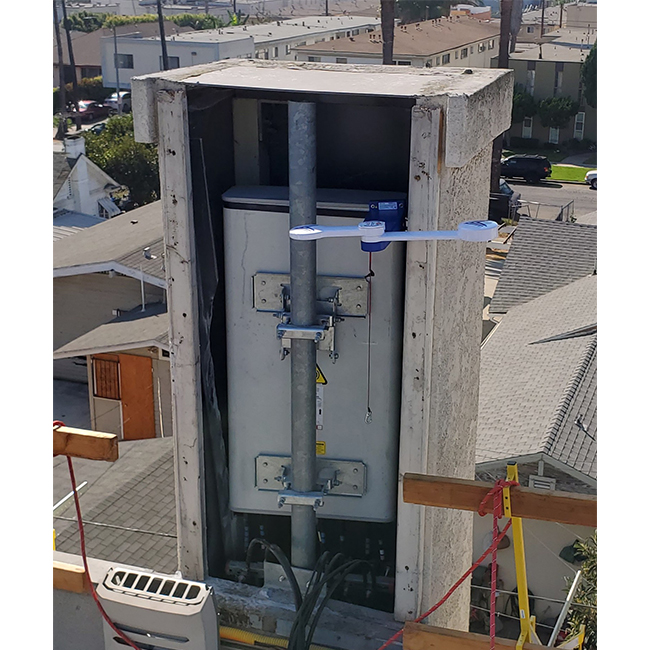

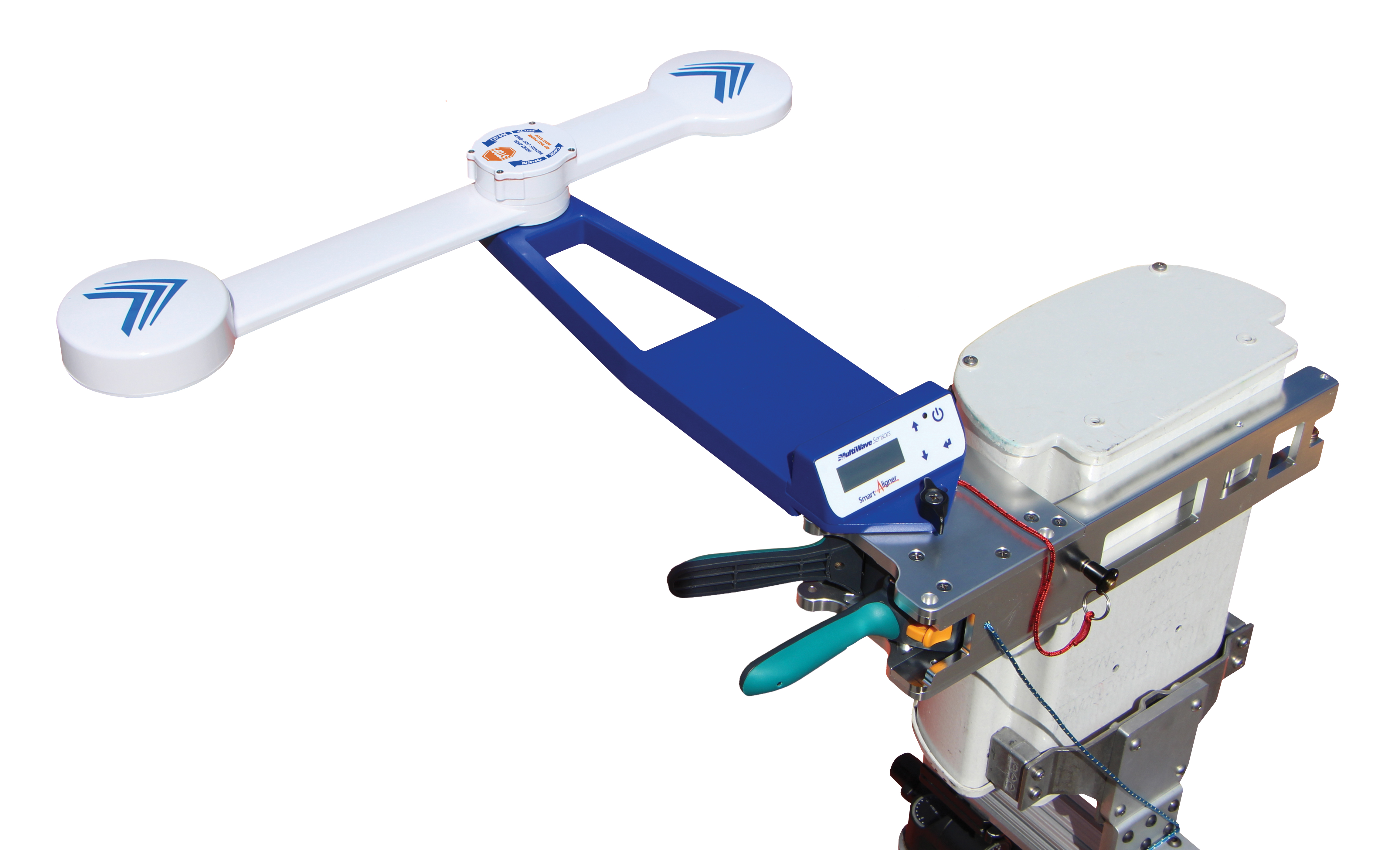

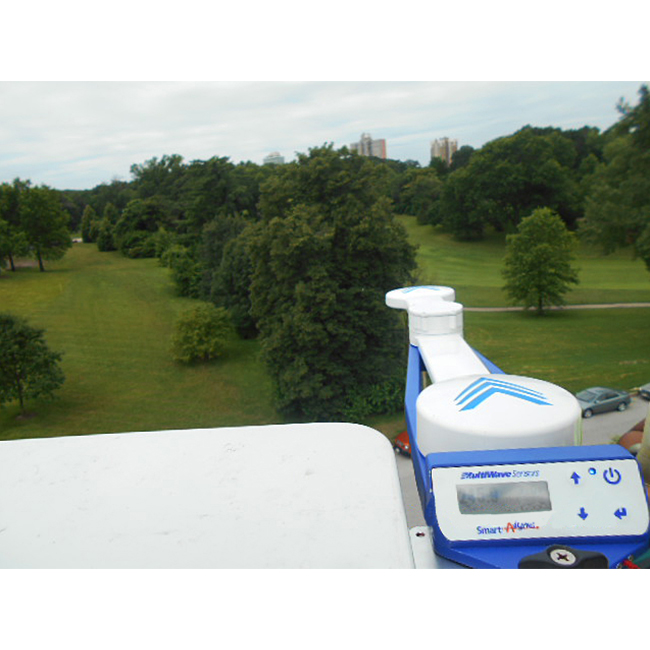

The Smart Aligner Plus Antenna Alignment Tool by Multiwave is a GPS-based compass designed to effectively and efficiently align your antennas in real-time. The Smart Aligner Plus solution is an antenna alignment tool designed for ease of use and unparalleled accuracy that provides a True North or Grid North azimuth measurement, Tilt, Roll, and Position. Once the system is mounted to the antenna, it is simply turned on. From there the user interface is the full-featured app on any iOS and Android smart device.

Reporting with this antenna aligner is as simple as a few clicks with the report being able to be emailed directly from the app. It gets even better with the Anritsu report integration - allowing for report flexibility without adding difficult steps.  The pro tool integration allows for more demanding applications - ensuring that this device does the hard work instead of the user. The system has been tested in the harshest RF live antenna environment while still maintaining its accuracy. The Smart Aligner Plus solution is an accurate, fast, and scalable antenna alignment tool creating an effective solution for all your alignment needs.
